How to Time a 4.0 Jeep Engine: Ultimate Timing Guide

How to Time a 4.0 Jeep Engine : Ultimate Timing Guide

To time a 4.0 Jeep engine, start by locating the timing marks on the engine and the harmonic balancer. Then connect a timing light and adjust the timing by loosening the distributor and rotating it until the correct timing mark on the harmonic balancer aligns with the specified mark on the engine housing.

When maintaining or working on a 4. 0 Jeep engine, properly timing it is crucial for optimal performance and efficiency. The timing of the engine dictates when the spark plugs ignite to initiate combustion, directly impacting the overall function of the vehicle.

By ensuring the timing is accurate, you can improve fuel efficiency and prolong the lifespan of the engine. This guide will provide an overview of how to effectively time a 4. 0 Jeep engine, allowing you to maintain your vehicle in top condition and avoid potential issues stemming from incorrect timing.

Timing Your 4.0 Jeep Engine

The timing of your 4.0 Jeep engine is a critical factor in ensuring optimal performance and longevity. Properly timed ignition allows for the efficient combustion of air and fuel in the engine, resulting in smooth operation and maximum power output.

Importance Of Accurate Engine Timing

Accurate engine timing is crucial for maximizing fuel efficiency, reducing emissions, and preventing engine knock. When the ignition timing is precise, the spark plugs ignite the air-fuel mixture at the right moment, ensuring the engine runs smoothly and efficiently. Proper timing also affects the engine’s power delivery, ensuring it operates at its peak performance.

Consequences Of Improper Timing

Improper timing can lead to a range of issues, including reduced engine performance, higher fuel consumption, and increased emissions. Additionally, it can cause engine overheating and potentially damage critical components. Poor timing can also lead to knocking or pinging noises, indicating inefficient combustion and potential damage to the engine.

Recognizing Timing Components

Recognizing timing components is crucial to properly time a 4.0 Jeep engine. Understanding the components involved in engine timing is essential for effectively maintaining and repairing the engine. The timing components, including the camshaft position sensor, crankshaft position sensor, and distributor, play vital roles in ensuring the engine functions at its optimum performance level.

Identifying The Camshaft Position Sensor

The camshaft position sensor is a vital component in the engine timing system. It is responsible for monitoring the position of the camshaft. This sensor utilizes signals to determine the position of the camshaft relative to the crankshaft. This information is essential for the engine control unit to determine the appropriate fuel injection and ignition timing.

Understanding The Crankshaft Position Sensor

The crankshaft position sensor is another key component in the engine timing system. This sensor is responsible for monitoring the position and rotational speed of the crankshaft. It provides crucial data to the engine control unit, enabling it to determine the precise timing for fuel injection and spark ignition.

Role Of The Distributor In Engine Timing

The distributor is a critical part of the engine timing system, particularly in older 4.0 Jeep engines. It is responsible for distributing high voltage from the ignition coil to the spark plugs in the correct firing order. The distributor rotor, driven by the camshaft, distributes the electrical charge to each spark plug at the appropriate time, ensuring efficient combustion within the engine.

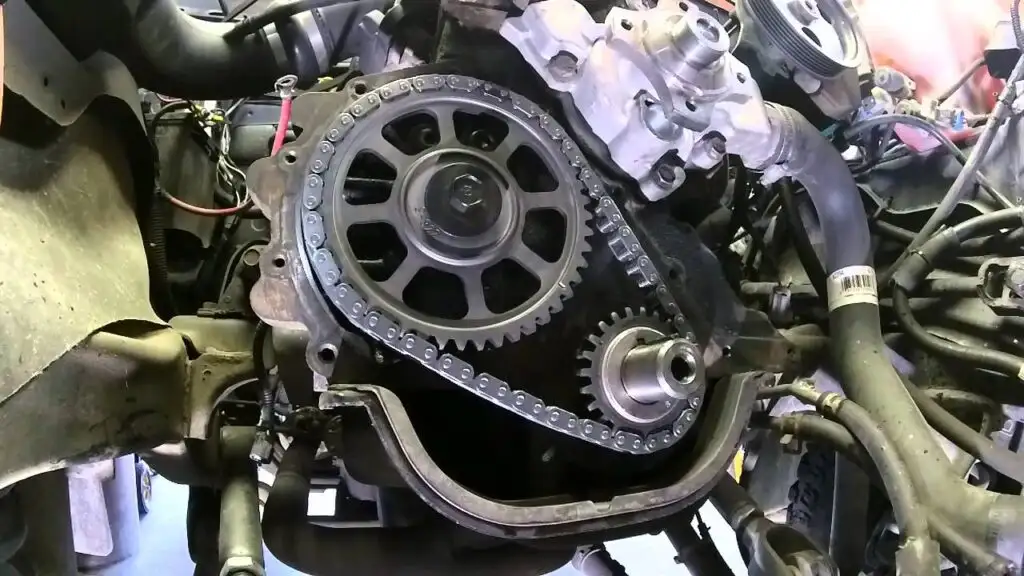

How to Time a 4.0 Jeep Engine : Ultimate Timing Guide
Credit: www.youtube.com

Pre-timing Checks

Before undertaking the process of timing a 4.0 Jeep engine, it is crucial to perform several checks to ensure the engine is in good health and that the necessary tools are readily available.

Verifying Engine Health

Before diving into timing the 4.0 Jeep engine, it is essential to assess the overall health of the engine. This involves checking for any signs of wear and tear, as well as completing a thorough inspection of the engine components. Pay specific attention to the condition of the timing belt or chain, as any signs of damage or wear could affect the timing process.

Checking For Previous Timing Work

Prior to timing the 4.0 Jeep engine, it is crucial to ascertain whether any previous timing work has been performed. This is important as it can impact the current timing process. By checking for any prior timing adjustments or repairs, you can better understand the engine’s history and make necessary adjustments accordingly.

Ensuring Tool Availability

It is imperative to ensure that all the required tools for timing the 4.0 Jeep engine are readily available. This includes tools such as a timing light, socket set, and a reliable timing guide specific to the 4.0 Jeep engine. Having the necessary tools on hand will streamline the timing process and minimize any potential delays.

Setting Up For Timing

To time a 4.0 Jeep engine, start by locating the timing marks on the crankshaft and camshaft. Use a timing light to adjust the distributor until the marks align at the specified degree. Double-check the timing with the light to ensure accuracy and smooth engine operation.

Preparing The Workplace

Before diving into timing the 4.0 Jeep engine, it’s crucial to prepare the workplace. Start by choosing a clean, well-lit workspace with enough room to maneuver around the vehicle. Ensure that all necessary tools are easily accessible to streamline the process.

Gathering Necessary Tools And Equipment

Make sure you have all the essential tools and equipment within reach before beginning the timing process. Some of the key items you will need include a timing light, a wrench set, a socket set, and safety goggles to protect your eyes from potential hazards.

Positioning The Vehicle For Access

Positioning the Jeep for timing is paramount for easy access and maneuverability. Place the vehicle on a flat, stable surface and engage the parking brake to prevent any unwanted movements. Additionally, ensure that the hood is propped open to provide ample space for reaching the engine components effectively.

Accessing The Timing Assembly

When it comes to timing a 4.0 Jeep engine, accessing the timing assembly is the crucial first step. Proper access allows for the necessary inspection and maintenance of the timing components, ensuring the engine runs at optimal performance. In this guide, we will explore the essential steps to accessing the timing assembly for a 4.0 Jeep engine.

Removing Necessary Components For Access

Before delving into the timing assembly, it is essential to remove certain components to gain clear access. Here are the steps to follow:

  • Start by disconnecting the negative terminal of the battery to ensure safety.
  • Remove the air intake system to create space and visibility around the timing assembly.
  • Loosen and remove the fan shroud and fan assembly, enabling easy access to the front of the engine.
  • Unbolt the harmonic balancer and carefully slide it out of the way to expose the timing components.

Visual Inspection Of Timing Components

With the necessary components removed, a visual inspection of the timing assembly is crucial. Follow these steps:

  1. Examine the timing chain and gears for any signs of wear or damage, such as visible cracks or excessive slack.
  2. Inspect the timing marks on the gears to ensure they align correctly, indicating proper timing.
  3. Check for any oil or debris buildup in the timing area, as this can affect the performance of the timing components.

Cleaning The Timing Area

Once the visual inspection is complete, cleaning the timing area is essential to ensure optimal functioning. Here’s how to do it:

  1. Use a clean cloth or soft brush to remove any dirt, oil, or debris from the timing components and surrounding area.
  2. Inspect and clean the timing chain tensioner to ensure it operates smoothly and maintains proper tension on the chain.

Aligning Timing Marks

If you are undergoing a Jeep 4.0 engine timing procedure, ensuring the alignment of timing marks is crucial to achieving optimal engine performance. In this section, we will delve into the process of aligning the timing marks in your 4.0 Jeep engine, beginning with finding the top dead center (TDC), aligning the crankshaft and camshaft marks, and ensuring distributor alignment.

Finding The Top Dead Center (TDC)

Locating the top dead center is the initial step in aligning the timing marks of your Jeep 4.0 engine. This can be achieved through the following steps:

  1. Remove the spark plug from the #1 cylinder.
  2. Rotate the crankshaft using a suitable tool until the piston reaches the top of its stroke.
  3. Verify the positioning of the piston at the highest point, indicating the top dead center.

Aligning The Crankshaft And Camshaft Marks

Once the top dead center is identified, the next step involves aligning the marks on the crankshaft and camshaft, ensuring synchronization between them. This can be accomplished through the following process:

  1. Refer to the manufacturer’s guidelines to locate the timing marks on the crankshaft and camshaft.
  2. Align these marks with their respective indicators, ensuring precise positioning.
  3. Verify the proper alignment by visually inspecting the alignment marks on both components.

Ensuring Distributor Alignment

Another crucial aspect of the timing process is ensuring distributor alignment. This involves:

  1. Install the distributor at the correct position, aligning it with the designated marker.
  2. Verify that the rotor faces the #1 cylinder when the engine is set at the top dead center.
  3. Adjust the distributor if necessary to achieve accurate alignment with the cylinder’s position.

Adjusting The Distributor

Adjusting the distributor is a crucial step in timing a 4.0 Jeep engine. Proper timing ensures optimal engine performance, fuel efficiency, and overall longevity. The process involves loosening the distributor hold-down clamp, rotating the distributor, setting the timing, and re-securing the distributor. Below, we’ll delve into each step in detail.

Loosening The Distributor Hold-down Clamp

Before adjusting the timing, the distributor hold-down clamp must be loosened to allow for movement. This can usually be achieved using a wrench or socket, depending on the specific model of the 4.0 Jeep engine.

Rotating The Distributor And Setting Timing

Once the clamp is loosened, the distributor can be rotated to adjust the timing. The engine should be running during this process, as the timing is set by turning the distributor and observing the timing mark on the harmonic balancer with a timing light. Rotating the distributor in the appropriate direction will advance or retard the timing until the ideal setting is achieved.

Re-securing The Distributor After Timing

After setting the timing, it’s crucial to re-secure the distributor hold-down clamp to lock it in place. This ensures that the timing remains fixed and doesn’t change unintentionally, which can lead to poor engine performance. Once the distributor is firmly in position, the engine’s timing is effectively adjusted, ready to deliver optimal power and efficiency.

Finalizing The Timing Process

After meticulously adjusting the timing of your 4.0 Jeep engine, it’s crucial to complete the process with precision and thoroughness. Finalizing the timing involves double-checking all timing marks, reassembling removed components, and conducting a test run to verify successful timing.

Double-checking All Timing Marks

Take the time to confirm that all timing marks are accurately aligned. Check the alignment of the camshaft and crankshaft timing marks to ensure they are precisely in sync. Using a timing light can aid in this final validation. Be thorough in this step to prevent any potential timing discrepancies.

Reassembling Removed Components

Assemble the components that were removed during the timing adjustment process. Ensure that all parts are securely fastened and reattached according to the manufacturer’s specifications. Double-check for any loose connections or missing components before proceeding to the next step.

Conducting A Test Run To Verify Successful Timing

Start the engine and carefully listen for any abnormal noises or irregularities. Observe the engine’s performance and ensure that it runs smoothly without any hiccups. Use a timing light once again to verify that the timing marks remain properly aligned during engine operation. This test run is crucial to confirm that the timing adjustments have been executed accurately.

Frequently Asked Questions On (How To Time A 4.0 Jeep Engine)



What Are The Benefits Of Timing A 4.0 Jeep Engine?

Timing your 4. 0 Jeep engine properly can improve fuel efficiency and engine performance.

How Often Should I Time My 4.0 Jeep Engine?

It’s recommended to time your 4. 0 Jeep engine during every tune-up or if you notice performance issues.

What Tools Do I Need To Time A 4.0 Jeep Engine?

To time a 4.0 Jeep engine, you’ll need a timing light, a wrench, and a timing mark on the crankshaft pulley.

Can I Time A 4.0 Jeep Engine Myself Or Should I Seek Professional Help?

Timing a 4. 0 Jeep engine can be done at home if you have the right tools and knowledge, but seeking professional help is also an option.

Conclusion

Timing a 4. 0 Jeep engine is a crucial task for maintaining optimal performance. By following the steps outlined in this guide, you can ensure that your engine runs smoothly and efficiently. Proper timing will not only improve the longevity of your vehicle but also enhance its overall driving experience.

Regular maintenance and attention to timing details will keep your 4.0 Jeep engine running like a well-oiled machine for years to come.
